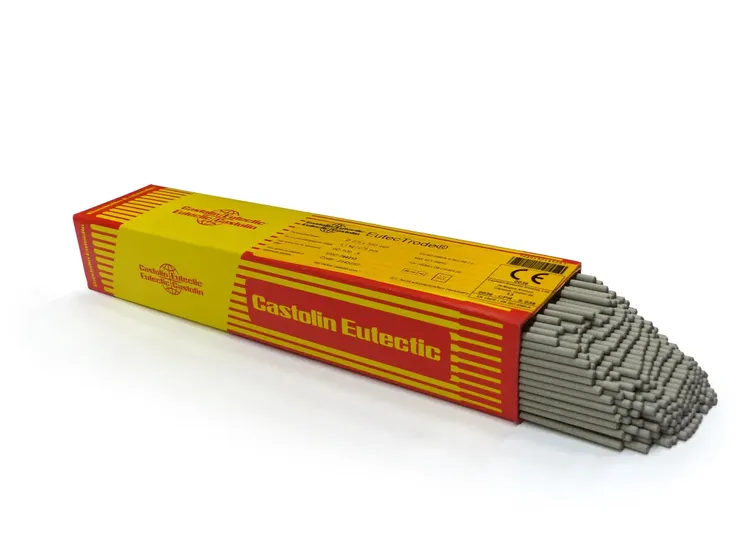

EutecTrode CP 35200 stick electrode

Basic coated stick electrode

Basic coated stick electrode with non-crackable weld metal. Good resistance to deformation under impact and compressive stress. Increased mechanical properties through tempering. Stable arc. Easily removable slag.

Technical data

EN 757: E 79 A Z BT 32
AWS A5.5: ~ E9016-B3

Applications

For joint welding of cast armored steel, fine-grained structural steels up to a yield strength of 780 MPa, rail steels up to a tensile strength of 685 MPa and heat-resistant structural steels. For build-up welding on unalloyed and low-alloy steels as well as buffer layers for subsequent armouring.

Applicable materials, e.g.:

• EN 10025-3: S 275 N – S 460 N
• EN 10025-4: S 275 M – S 460 M
• EN 10025-6: S 460 Q – S 690 Q
• EN 10028-2: P 235 GH – P 355 GH
• 1.7335 – 13 CrMo 4 5
• 1.7380 – 10 CrMo 9 10

and corresponding cast and pipe materials.

Processing instructions

Remove cracked and otherwise damaged material. Clean welding areas. Re-dry at 350 °C / 2 h. Adjust the heat input during welding to the component, its material and dimensions.

• Welding positions: PA, PB, PC, PE, PF, PD
• Type of current: = (+) or ~
