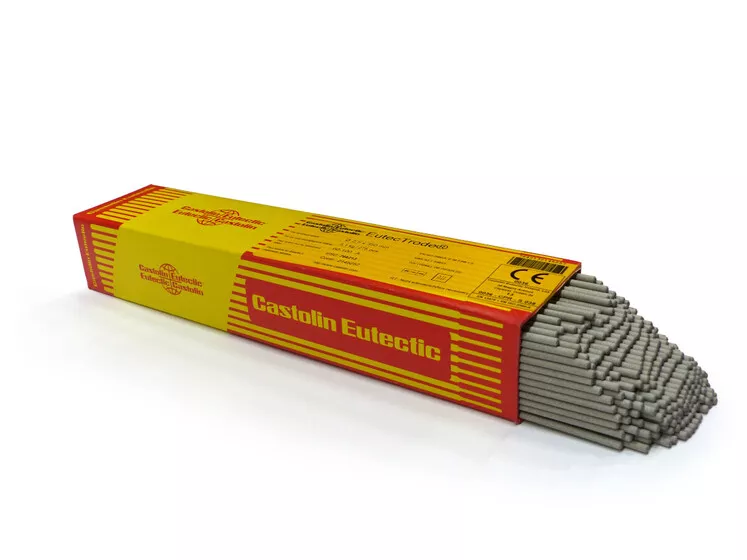

EutecTrode 6666 stick electrode

Double-sheathed stick electrode for unalloyed and low-alloy steels / FK structural steels

Double-coated rod electrode with basic and rutile coating characteristics. Uniform and finely feathered seams. Stable arc, fine droplet material transition and low spatter formation. Good suitability for constrained positions.

Good suitability for contact welding. Permissible operating temperatures from -20 °C to 350 °C. Easily removable slag.

Technical data

DIN EN ISO 2560-A: E 42 4 B 32
AWS A5.5: E8018-G

Applications

For joint welding of unalloyed and low-alloy steels and high-strength fine-grained structural steels, e.g:

• EN 10025-2: S 235 J2 – S 355 K2
• EN 10025-3: S 275 NL – S 420 NL
• EN 10025-4: S 275 ML – S 420 ML
• EN 10083-1: C 22 R, C 25 R
• EN 10028-2: P 235 GH – P 355 GH

and corresponding cast and pipe materials.

Typical application examples are:

Tack welds, assembly work, workshop and repair welding in machine, car body, wagon, steel and ship construction as well as in tank and boiler construction.

Processing instructions

Clean welding areas. Re-dry at 250 °C / 2 h. During welding, adjust the heat input to the component, its material and dimensions.

• Welding positions: all, except PG (f)
• Type of current: = (+) or ~

Approvals

TÜV, DB (10.024.03), CE
Eurocode 01964
